Sheets
Overview of available patterns for sheets.
The shape and pattern of sheet you need will depend on the attachment on your machine, and on the method used to fix the sheets to the machine. Cibo has a wide range of shapes and patterns that sheets can be cut into from the base material.
The tables below provide an overview of available shapes and patterns.
As well as the styles shown, Cibo can produce new shapes very quickly –
just ask!
Shape
| Length
| Width
| Perforations
| Code
|
 | 55
| 40
| 0

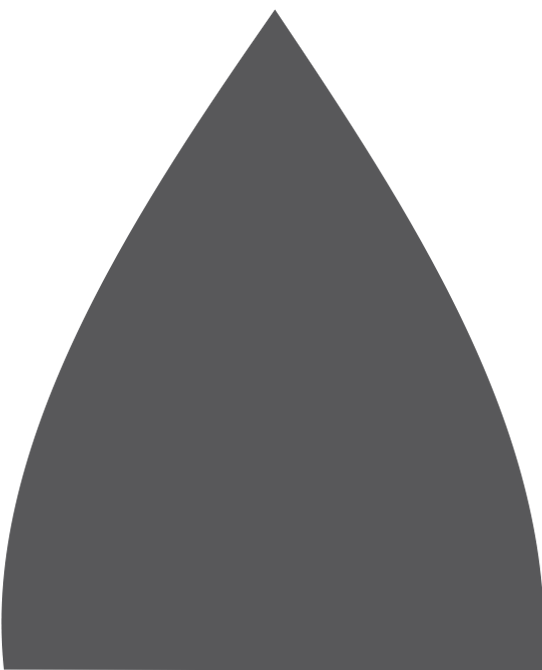

| D003
|
 | 70
| 70
| 0

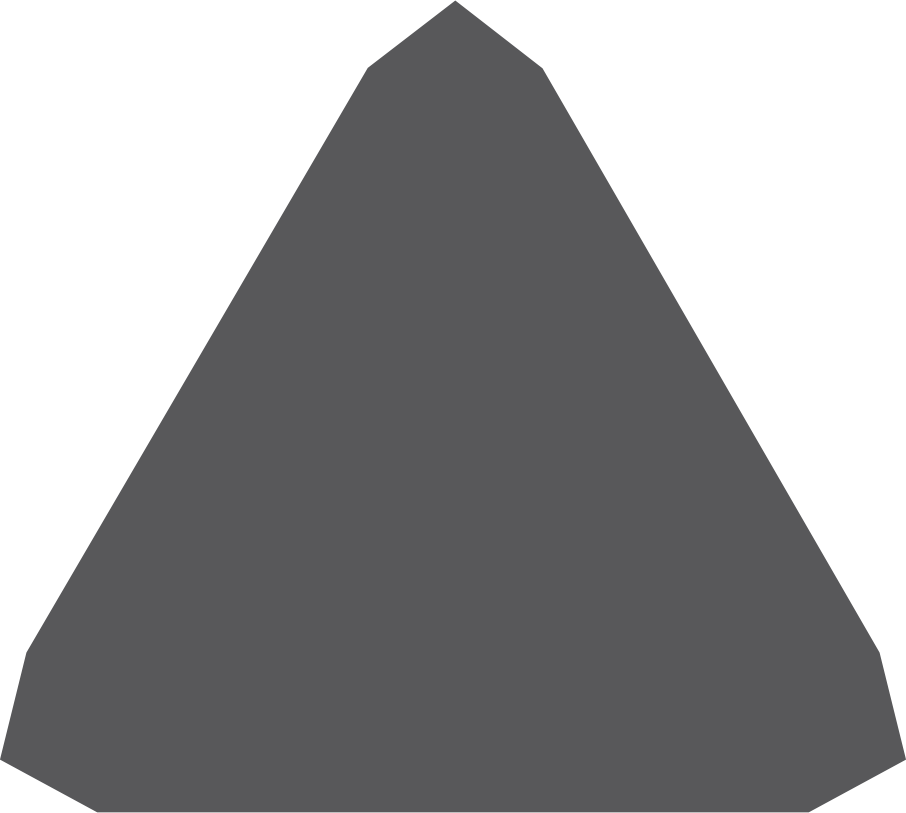

| D005
|
 | 80
| 80
| 0

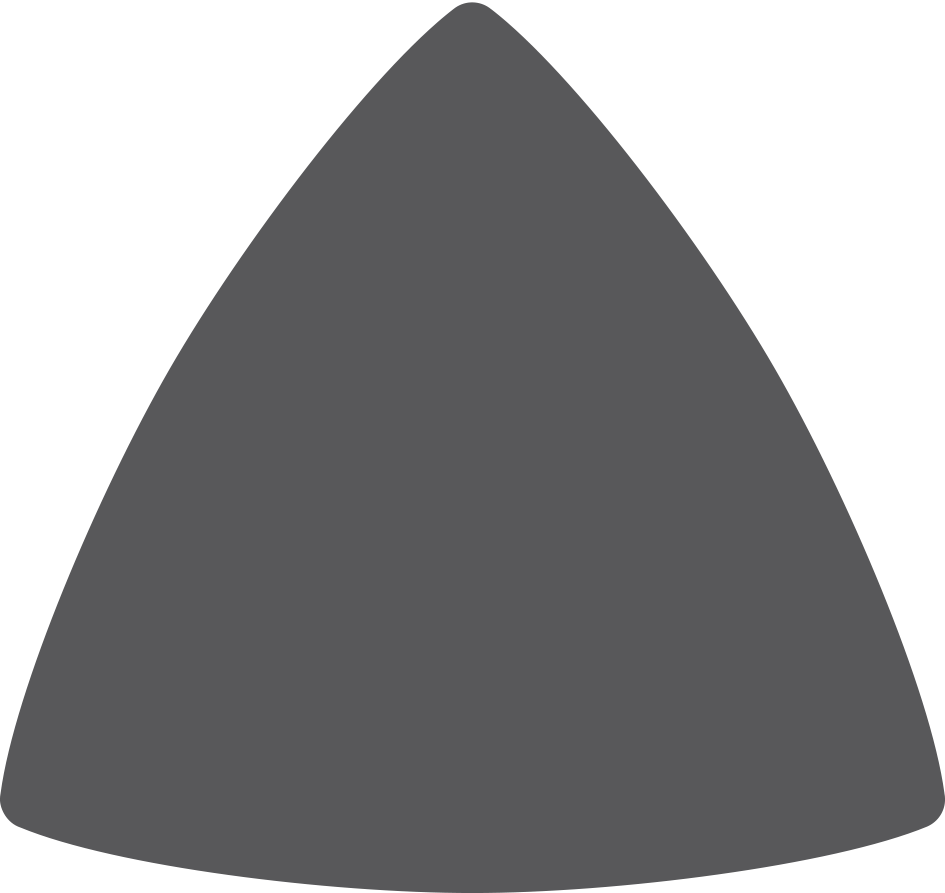

| D001
|
 | 90
| 50
| 0
| D007
|
| 95
| 50
| 0
| D004
|

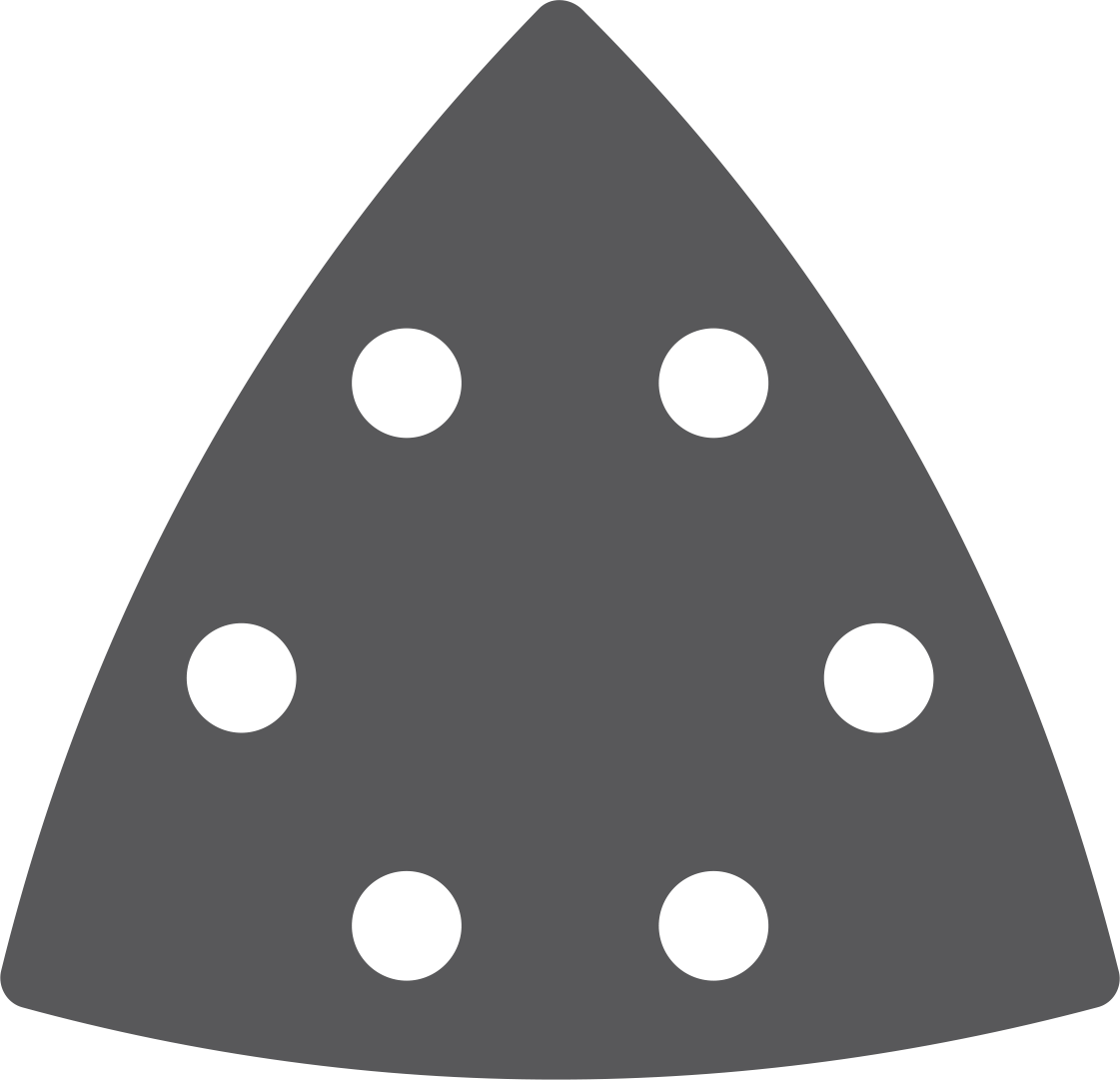

 | 95
| 95
| 6
| DP01
|
 | 95
| 95
| 6

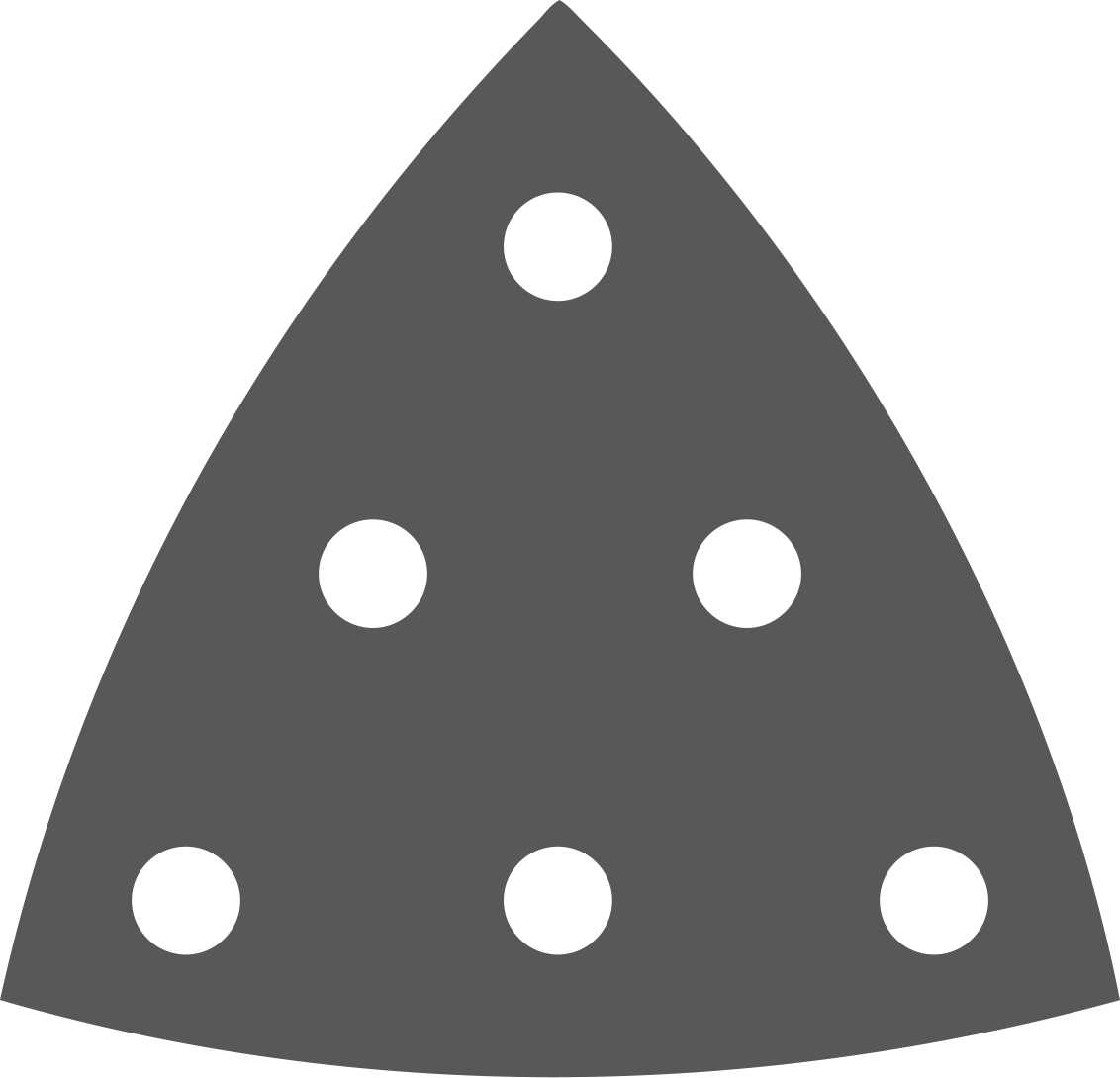

| DP02
|
 | 100
| 60
| 0

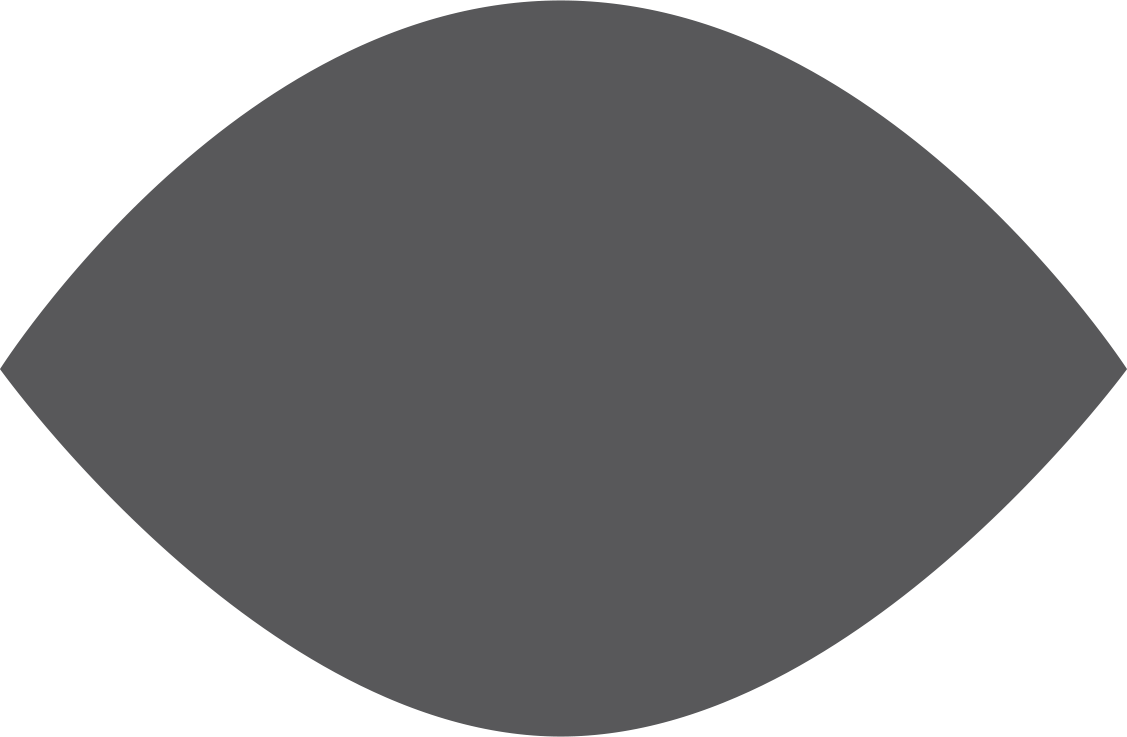

| D006
|
 | 100
| 65
| 0

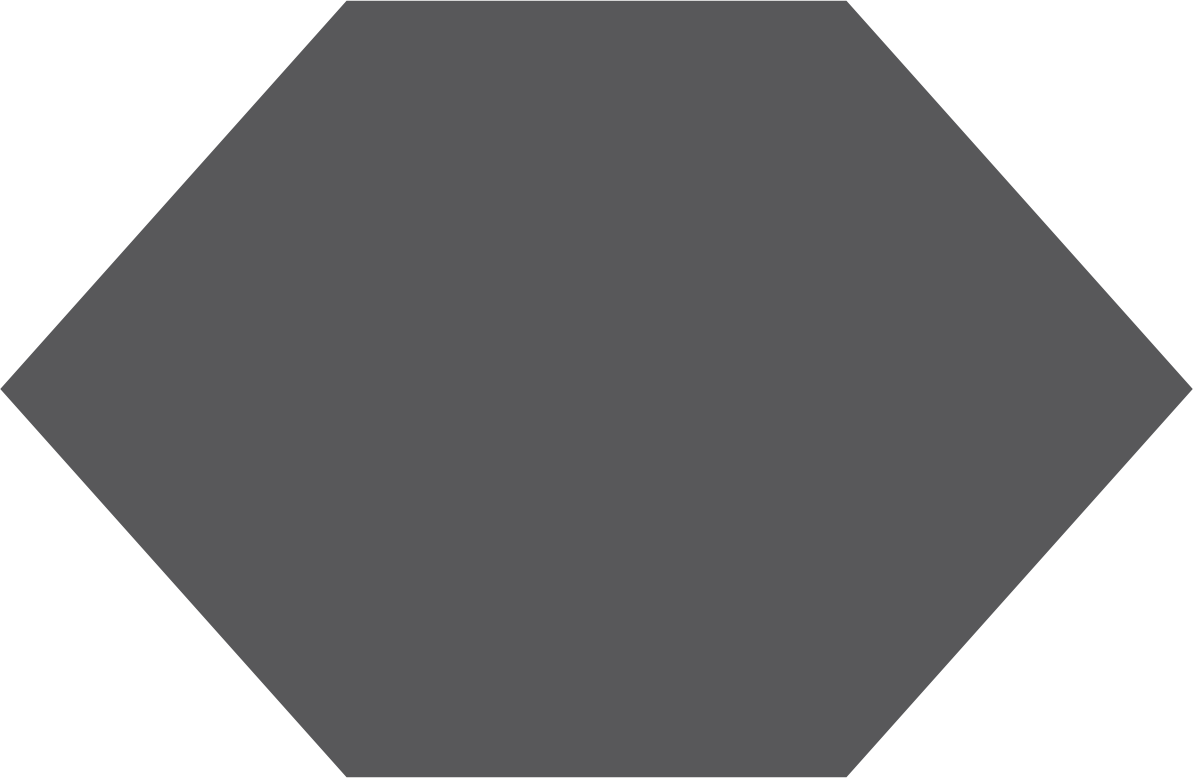

| D002
|
 | 102
| 62
| 5

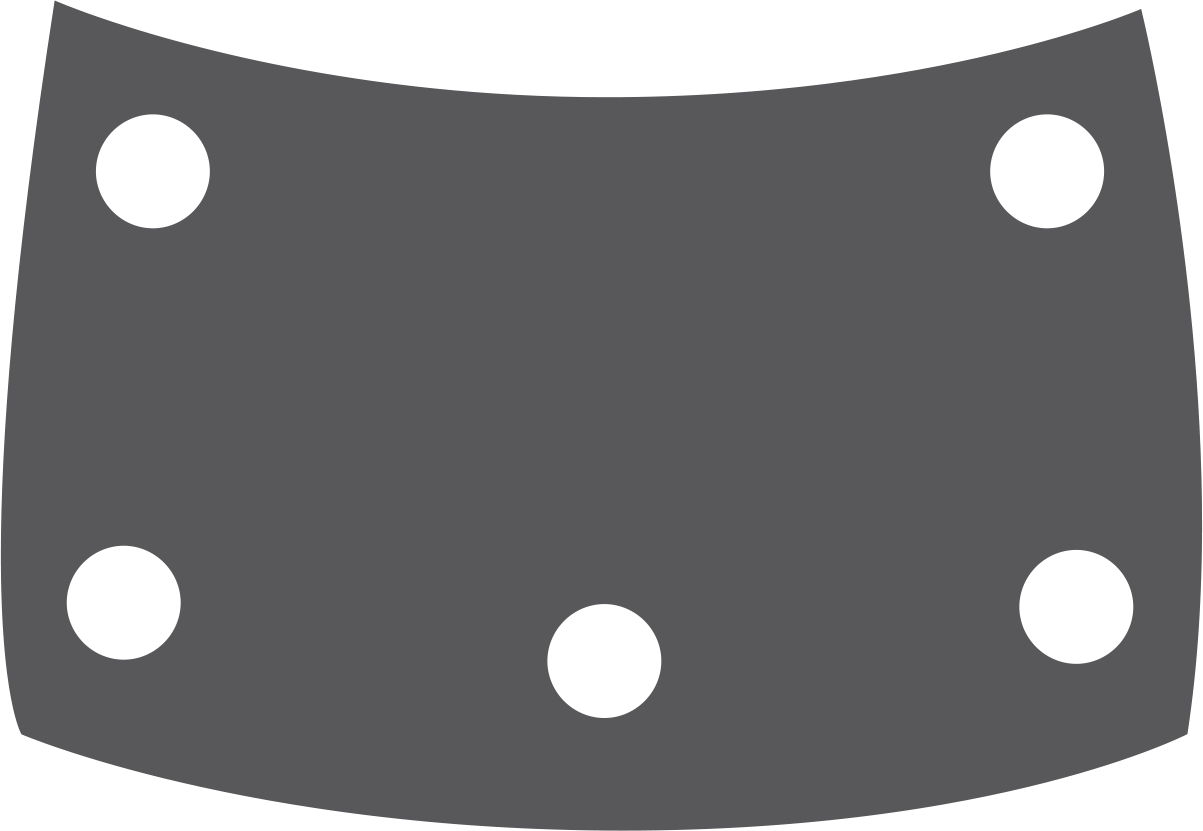

| DP09
|
 | 105
| 105
| 6
| DP03
|
 | 120
| 120
| 6

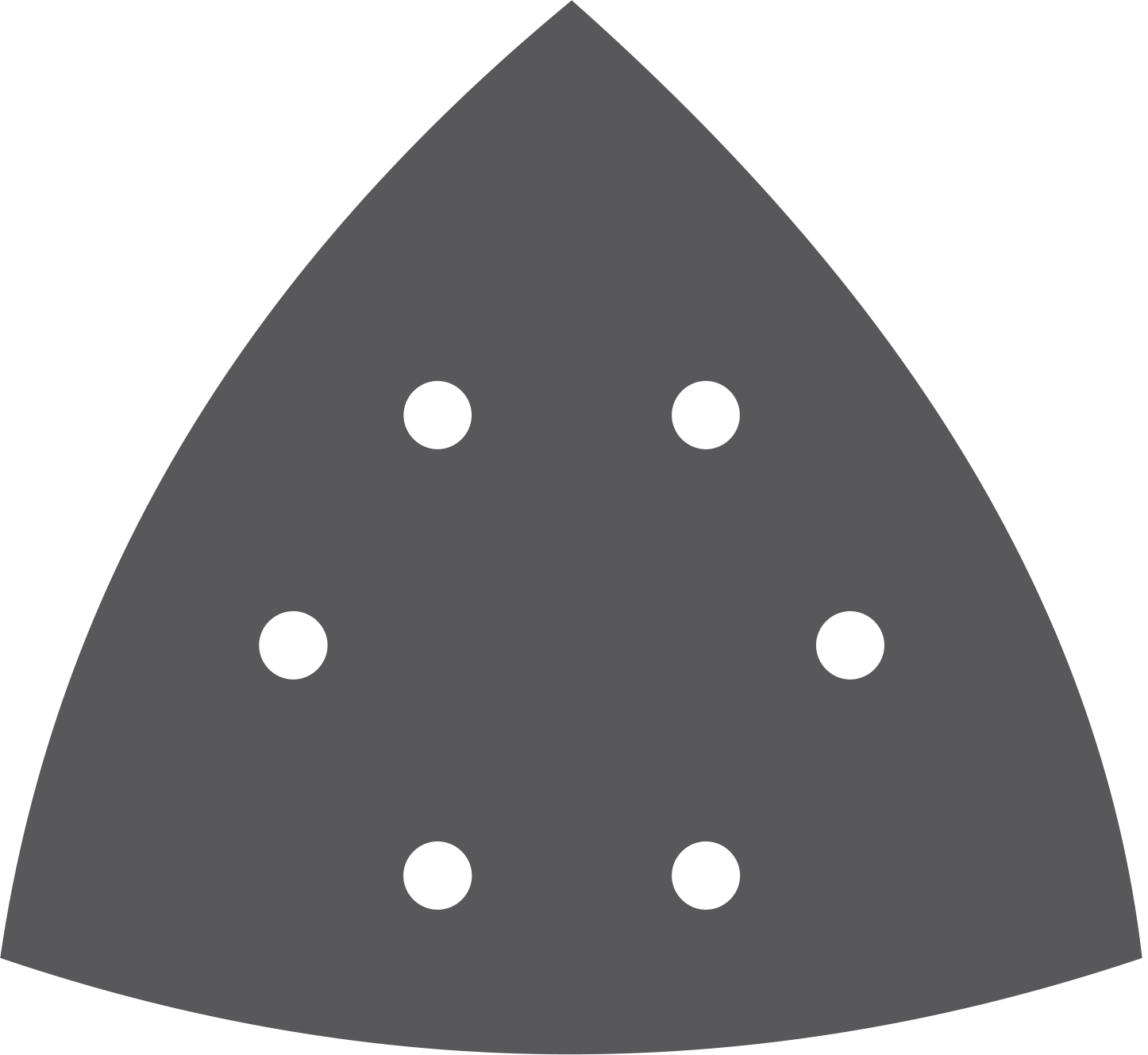

| DP07
|

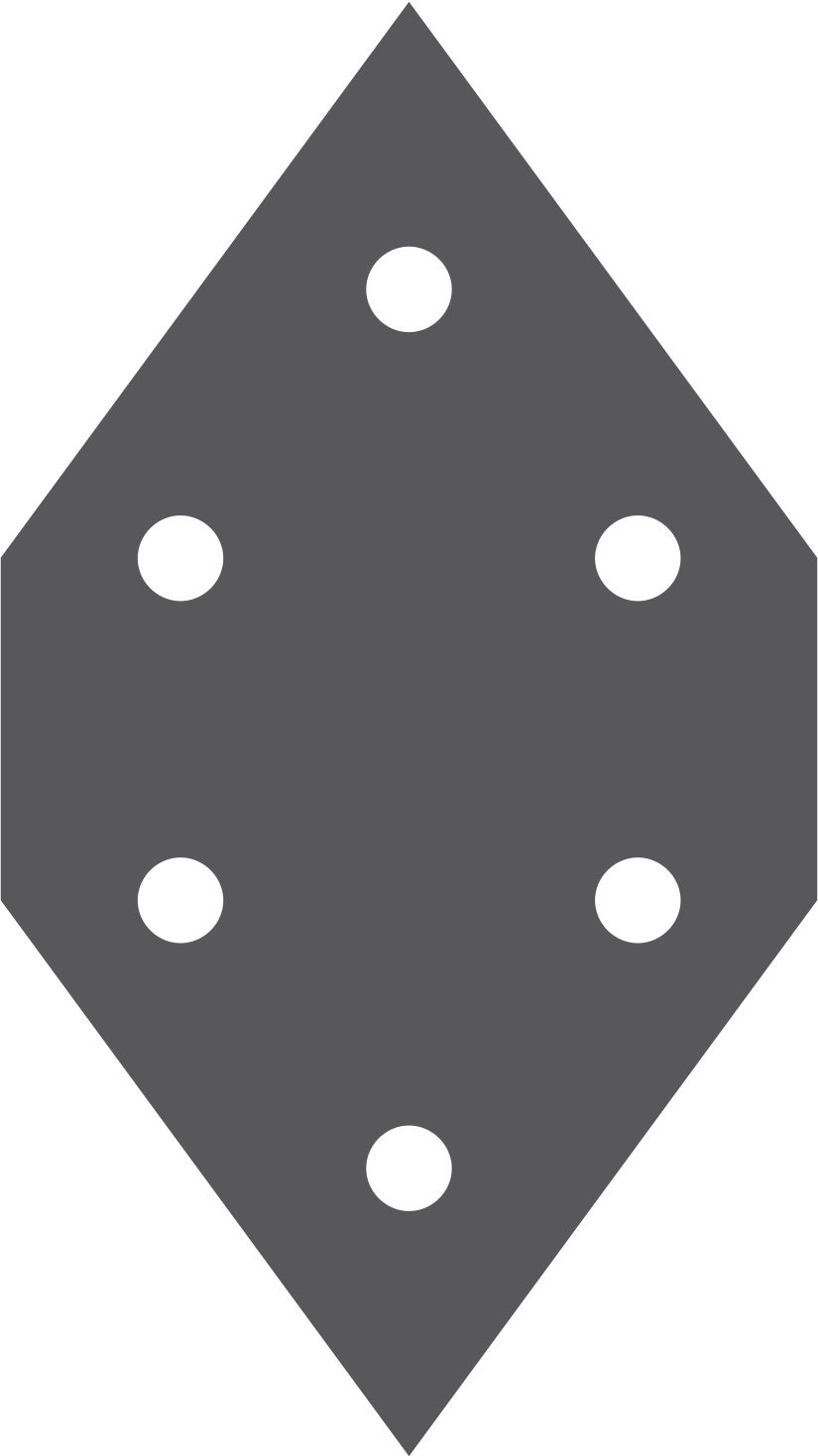

 | 125
| 70
| 6
| DP05
|
 | 140
| 100
| 5

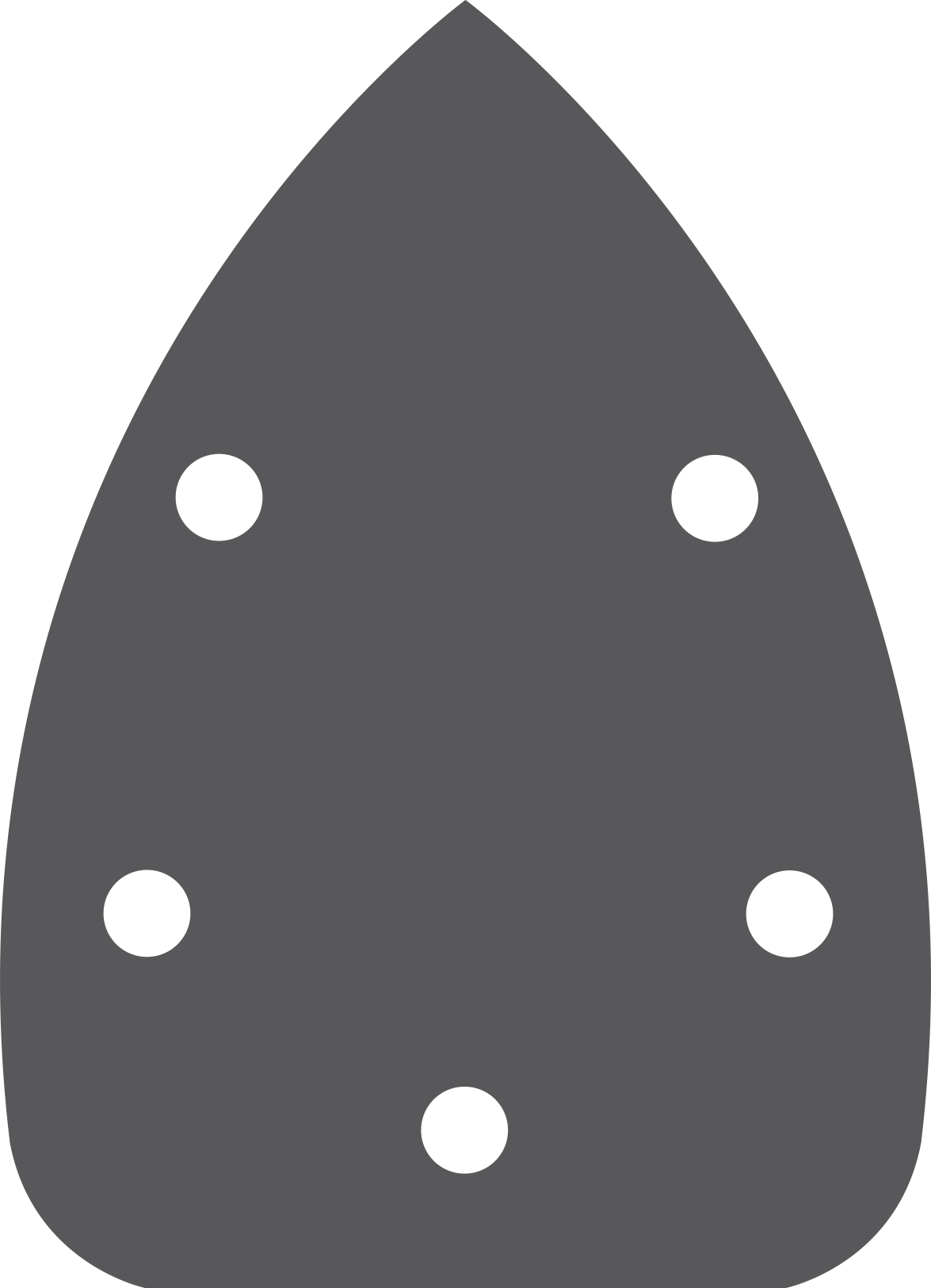

| DP10
|

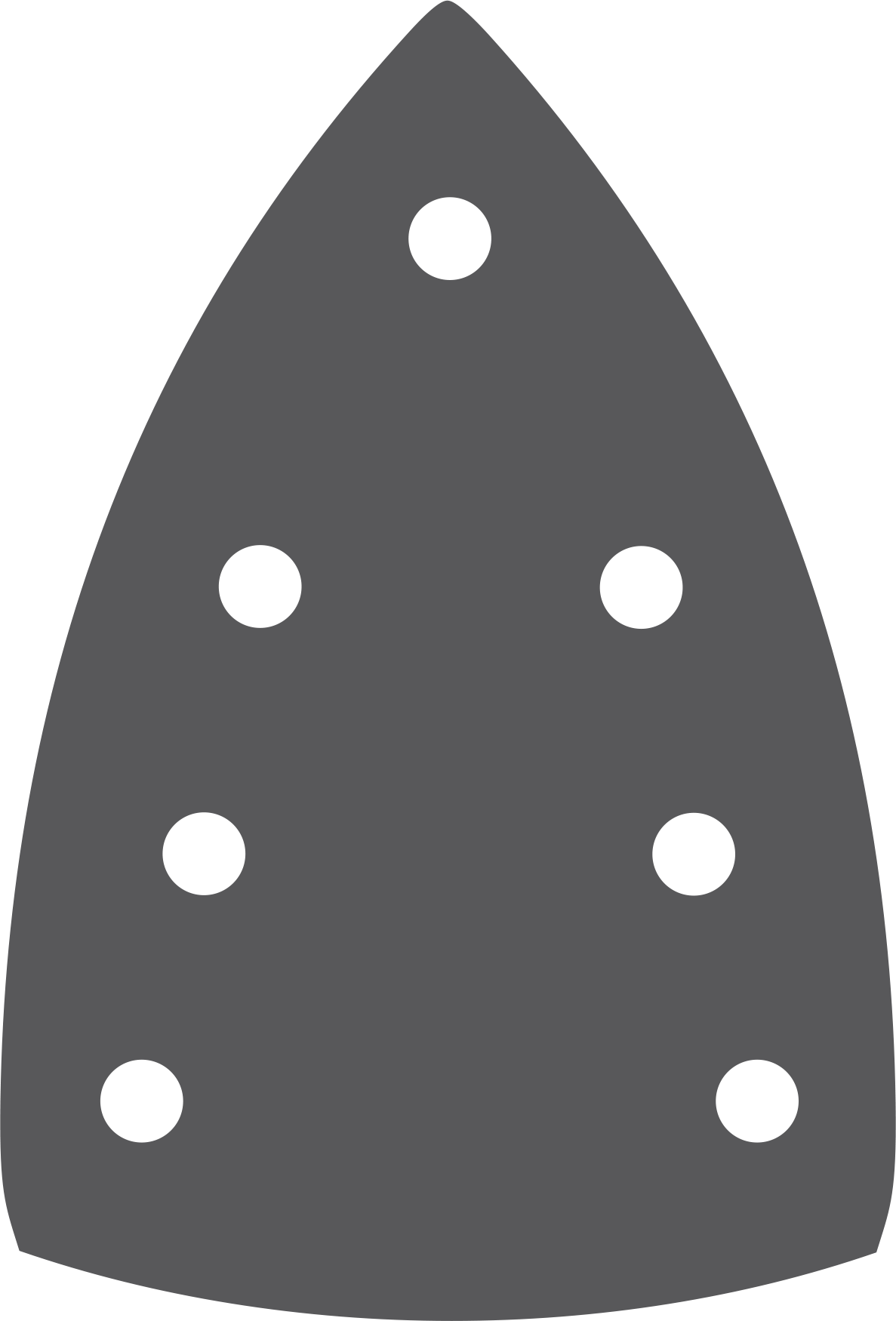

 | 150
| 102
| 7
| DP04
|
 | 150
| 102
| 7

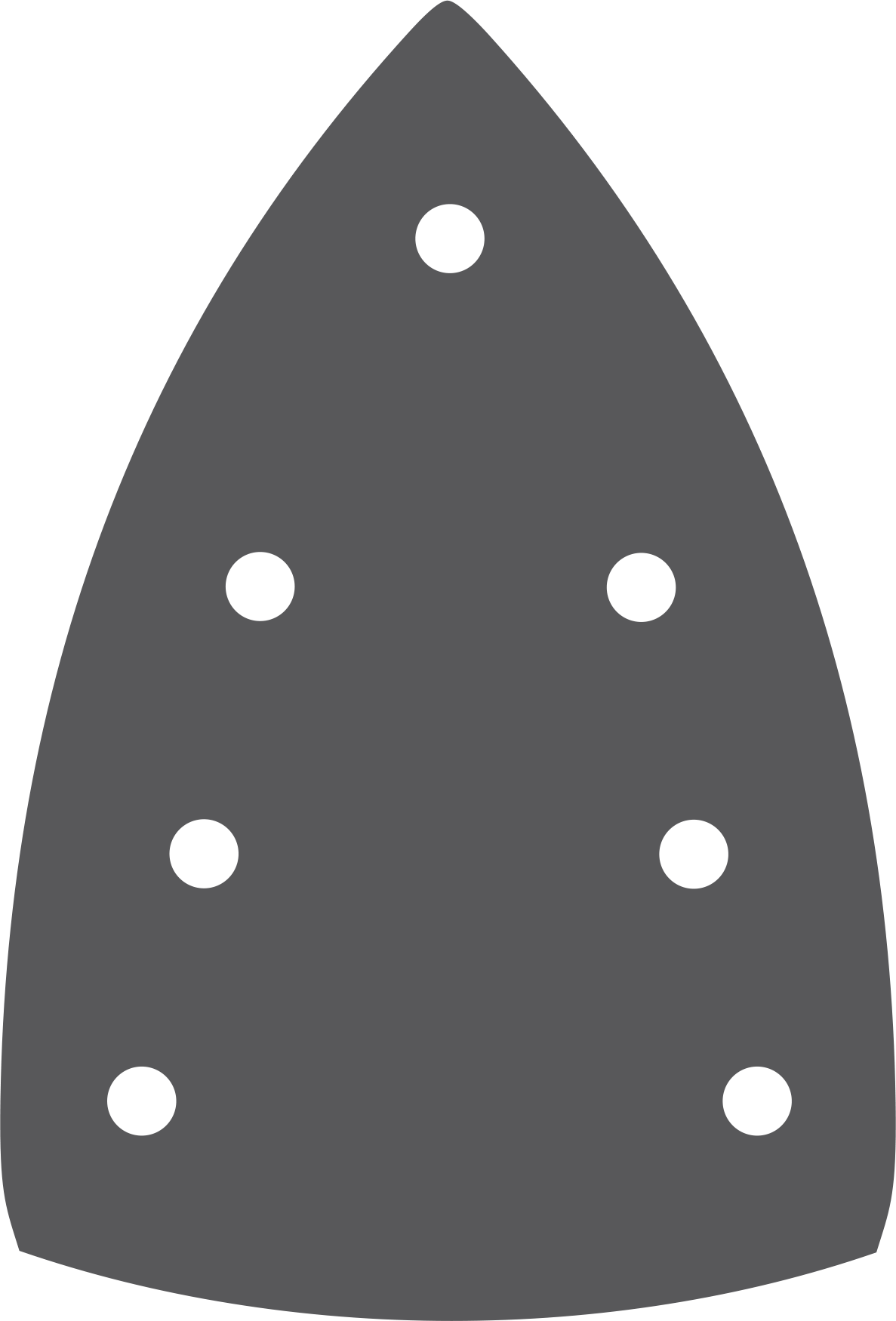

| DP11
|
 | 173
| 100
| 8

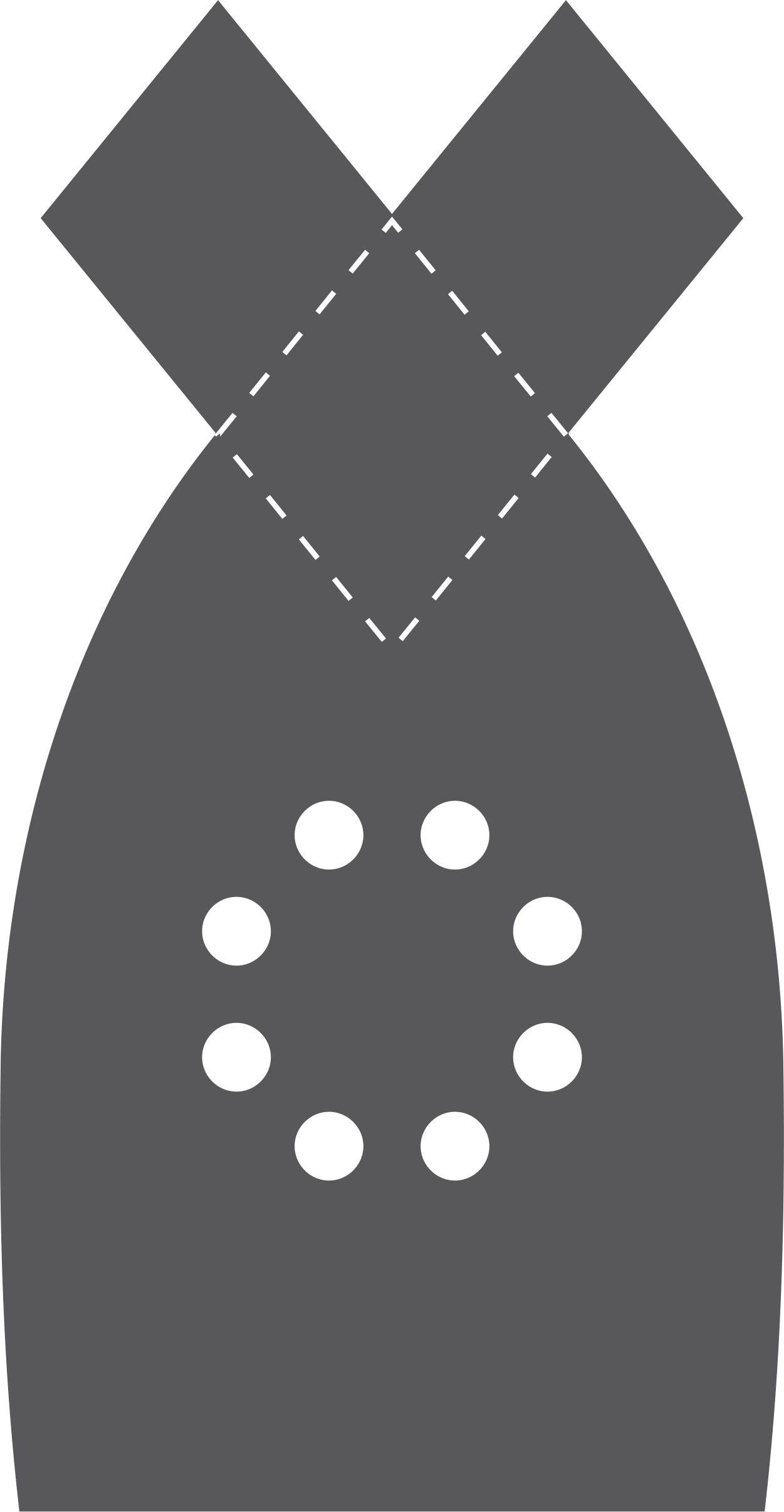

| DP06
|

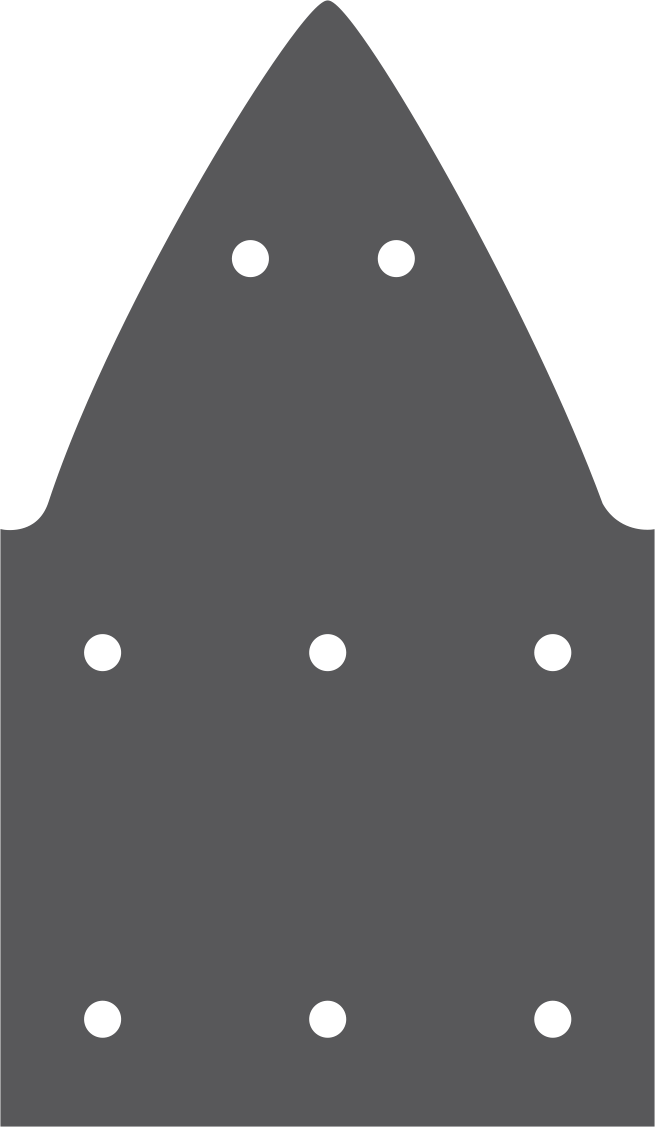

 | 185
| 110
| 8
| DP08
|
Shape
| Length
| Width
| Perforations
| Code
|
 | 60
| 40
| 0
| V000
|
 | 115
| 102
| 6

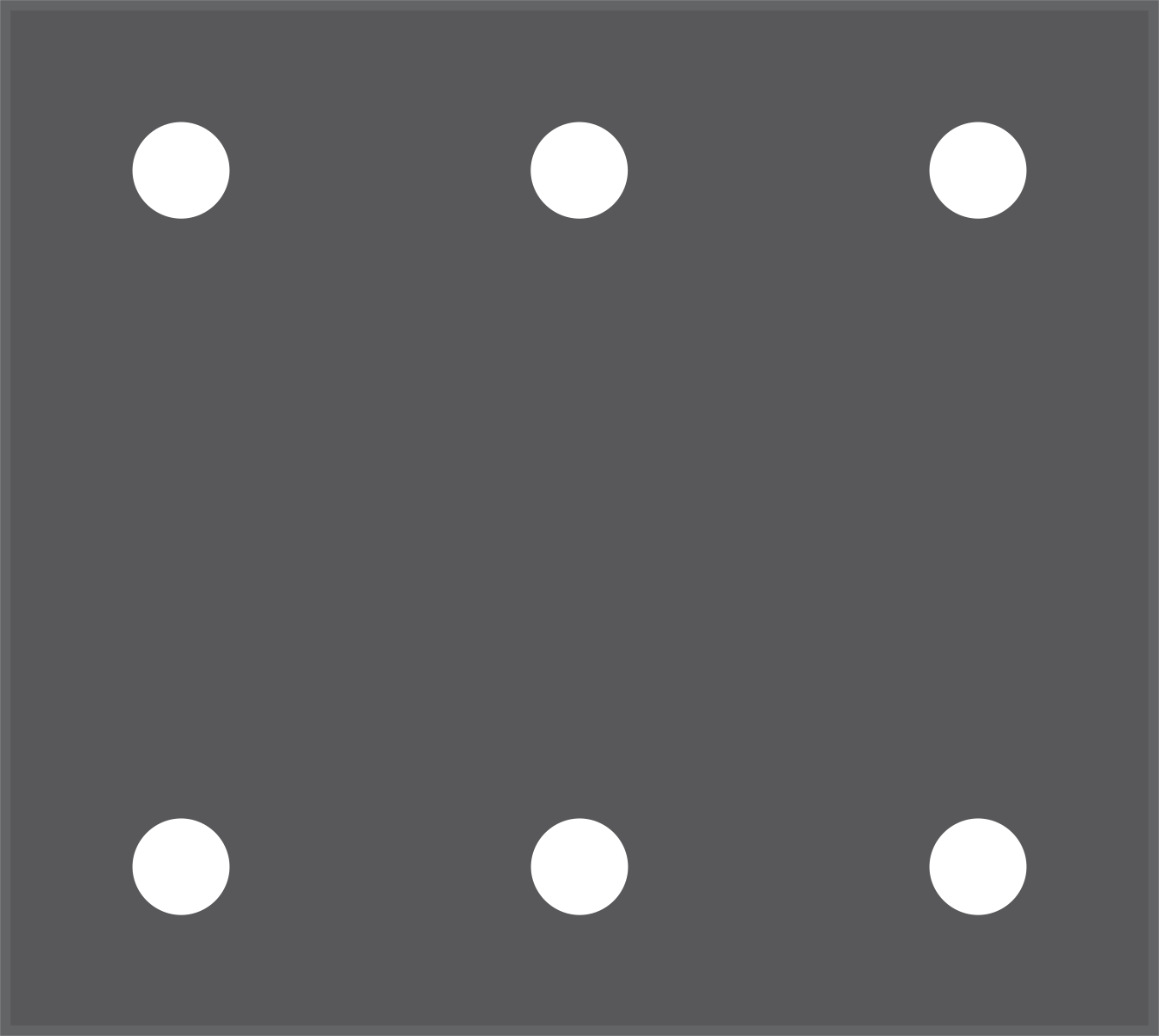

| VP01
|
 | 115
| 102
| 6
| VP25
|
 | 115
| 112
| 8
| VP12
|
 | 125
| 70
| 0
| V001
|
 | 133
| 81
| 8

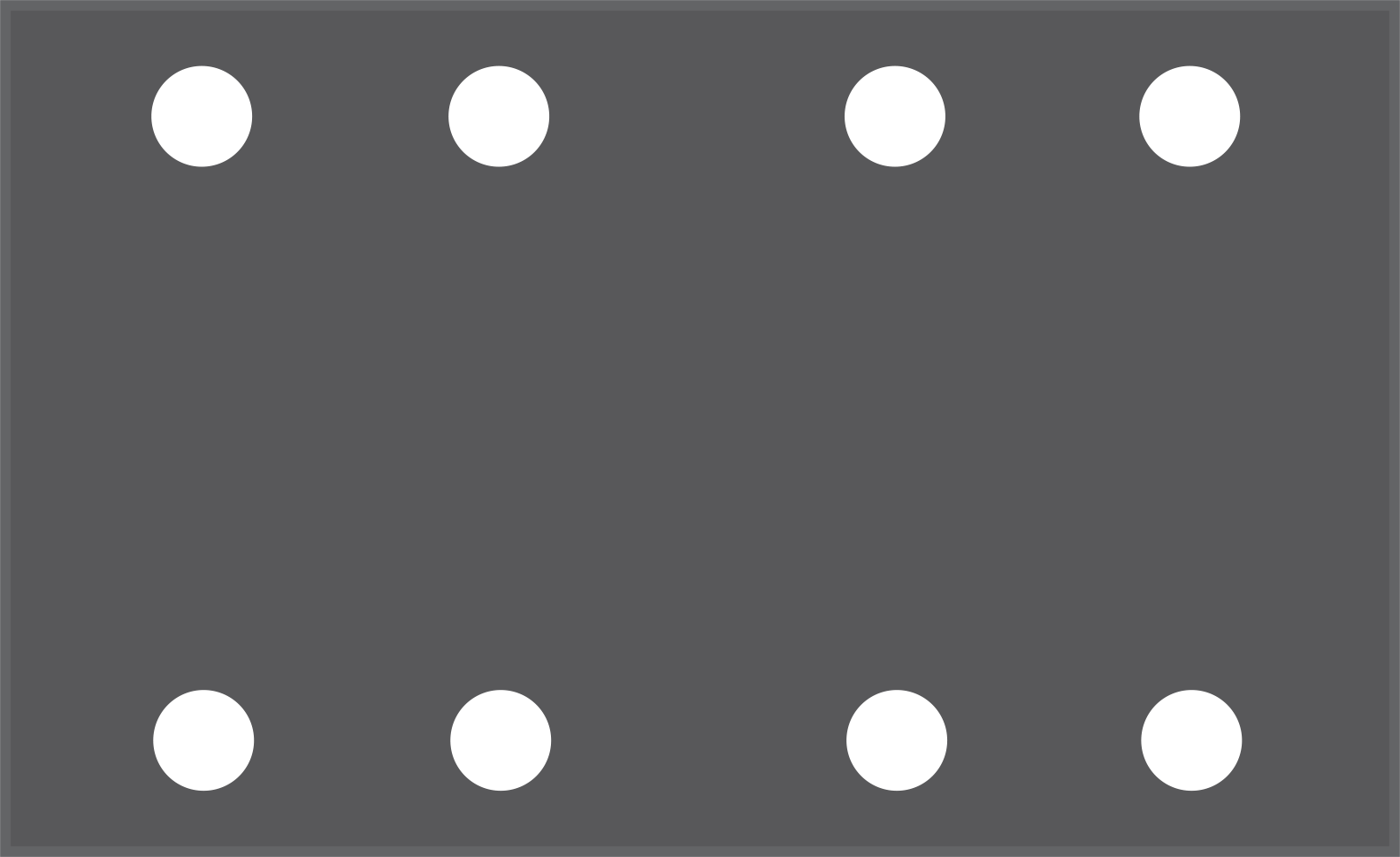

| VP03
|
 | 133
| 81
| 4+4

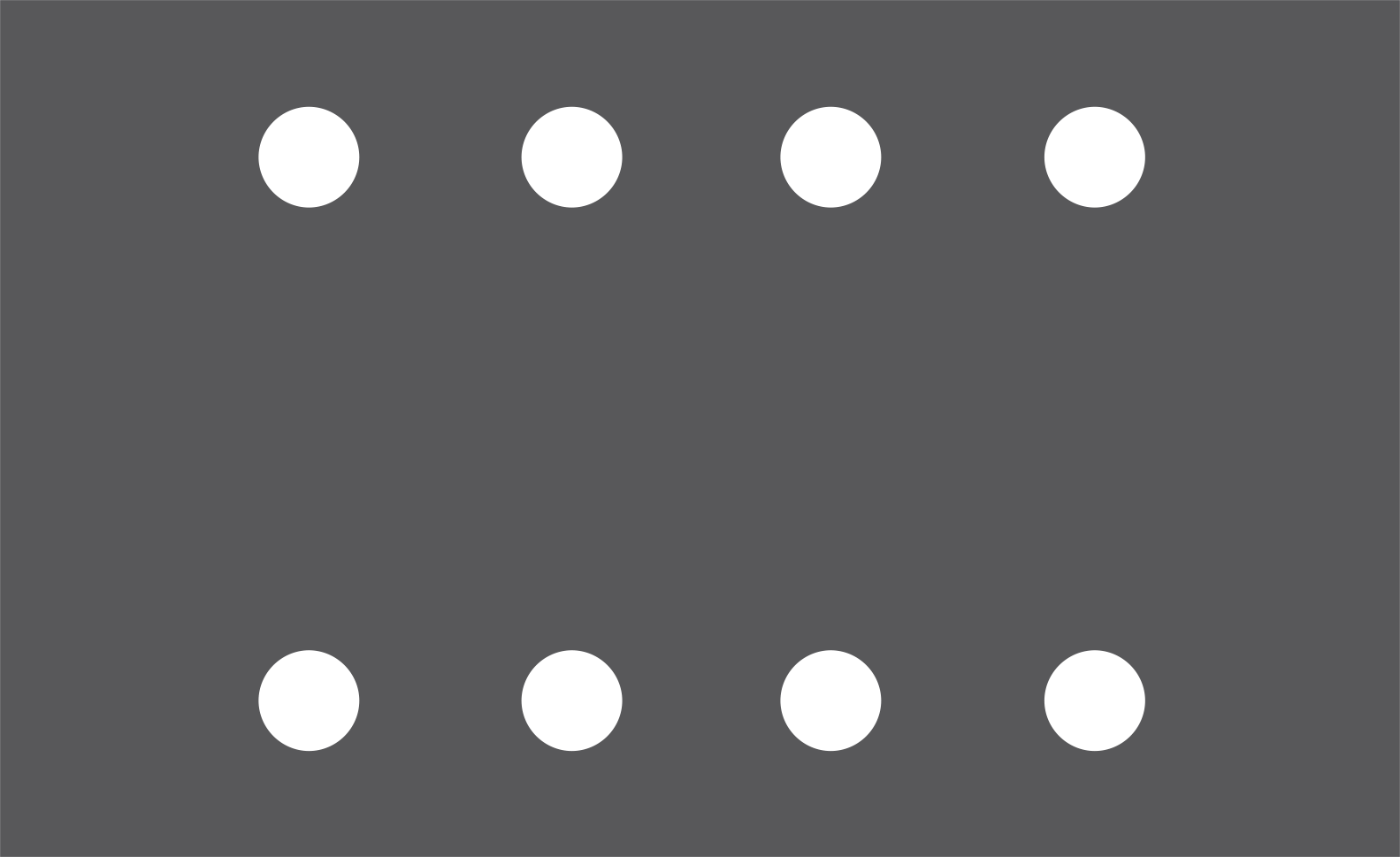

| VP02
|
 | 153
| 81
| 8

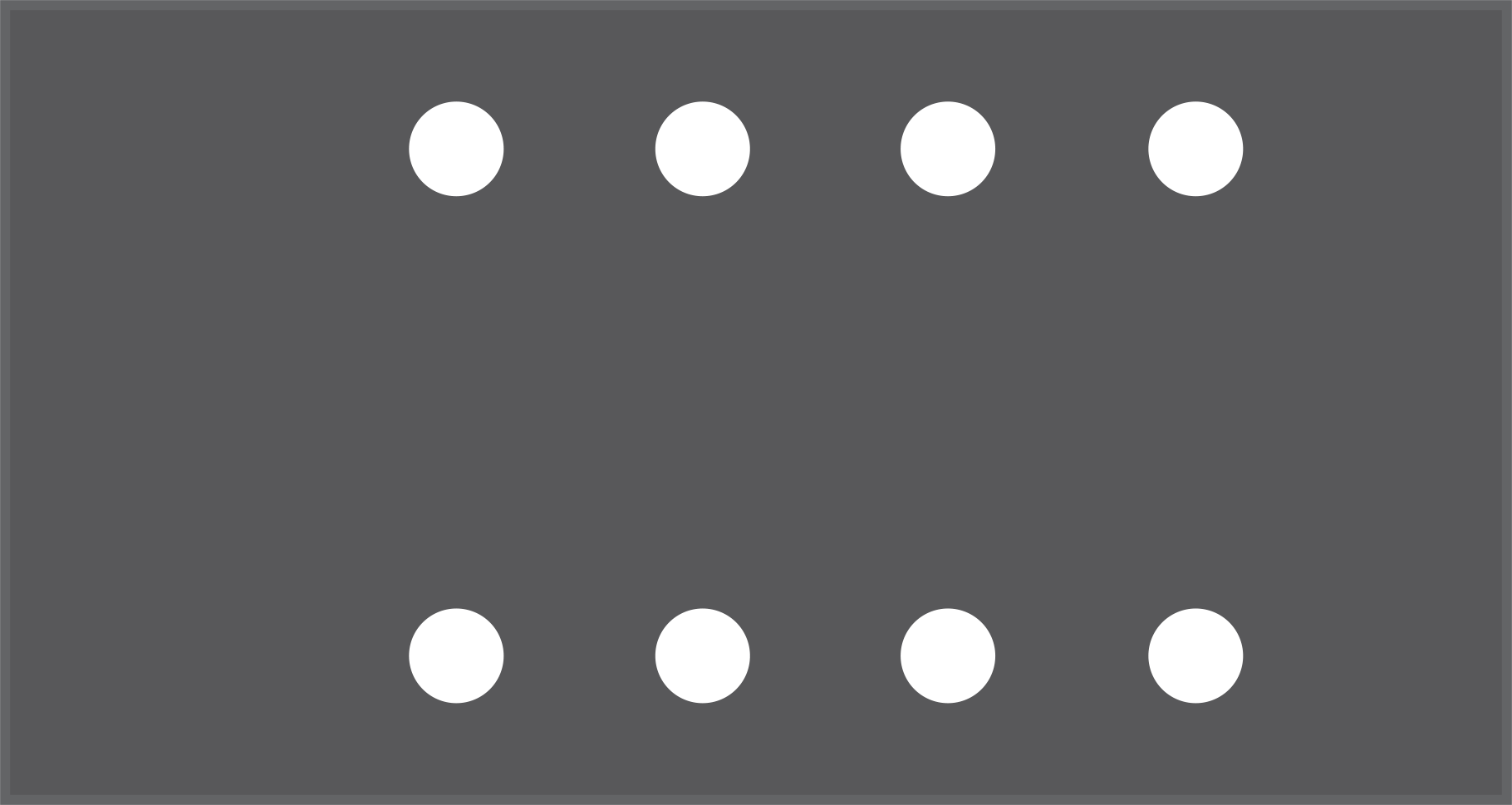

| VP04
|

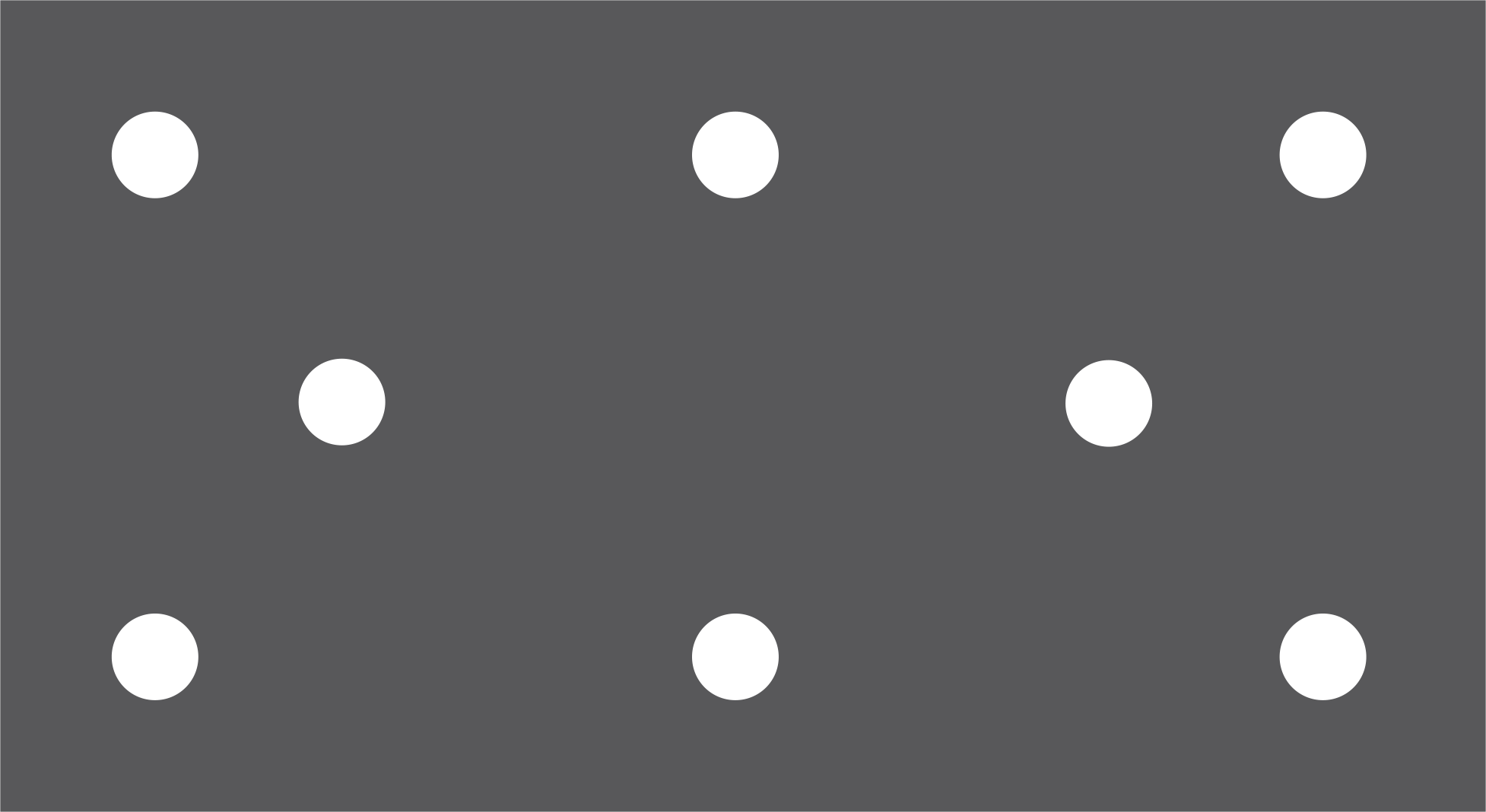

 | 165
| 90
| 6+2
| VP24
|
 | 178
| 93
| 0
| V002
|
 | 178
| 93
| 8
| VP05
|
 | 178
| 93
| 10
| VP07
|
 | 186
| 93
| 8
| VP06
|

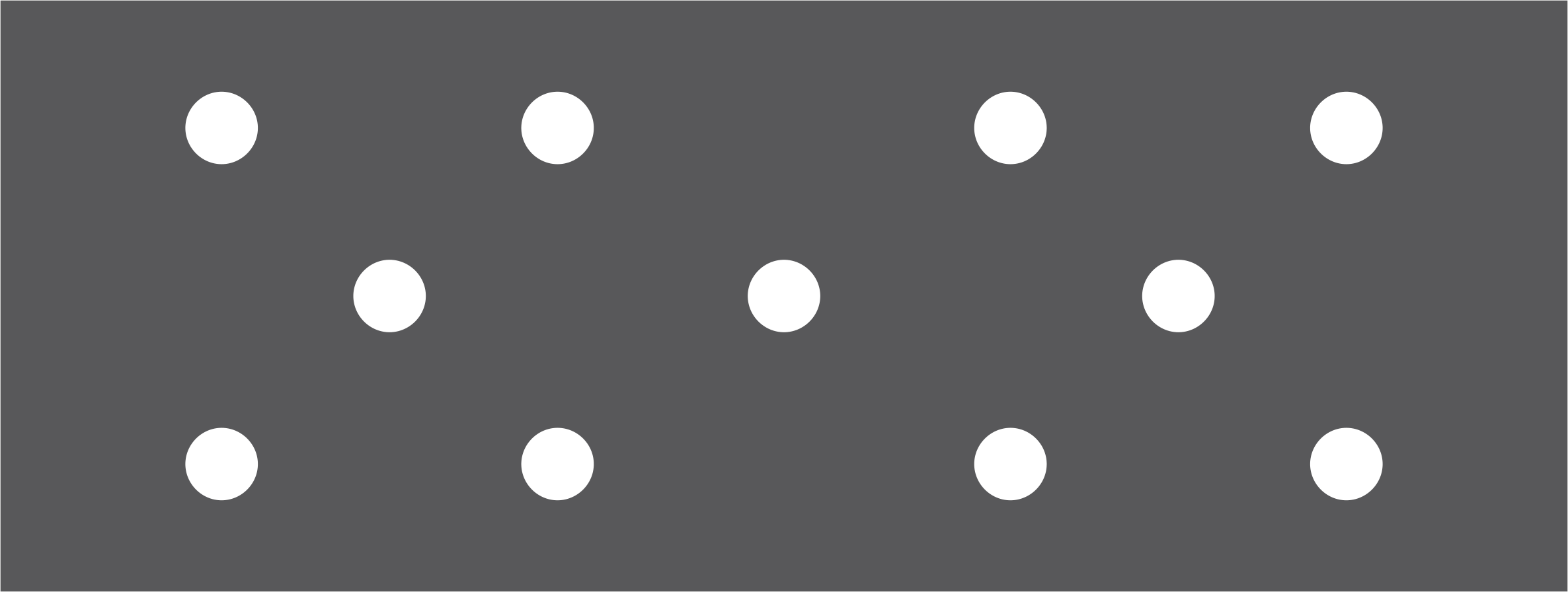

 | 200
| 75
| 11
| VP13
|

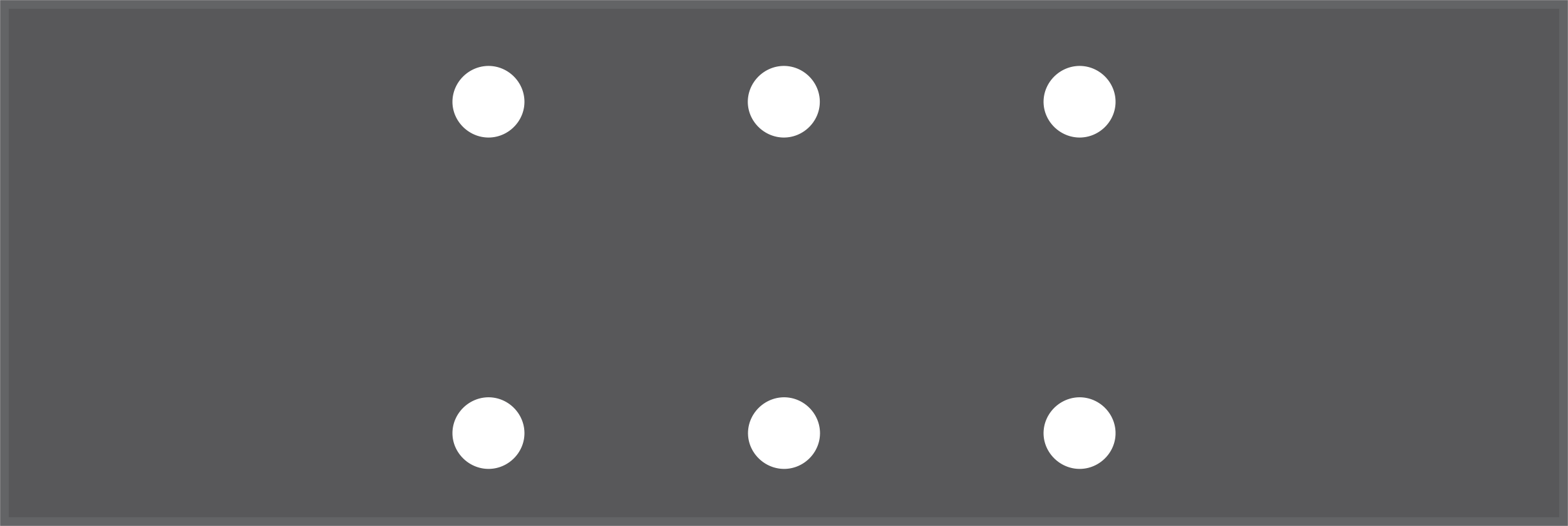

 | 205
| 68
| 6
| VP15
|
 | 205
| 70
| 6

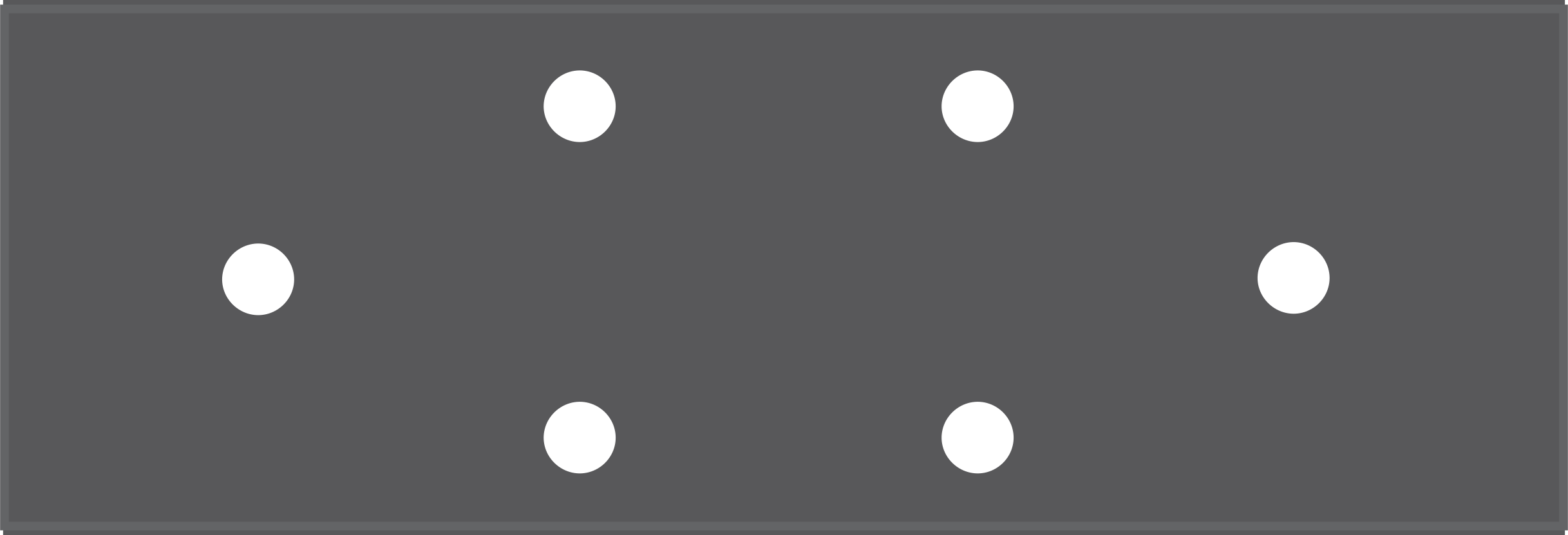

| VP18
|
 | 215
| 110
| 6+2

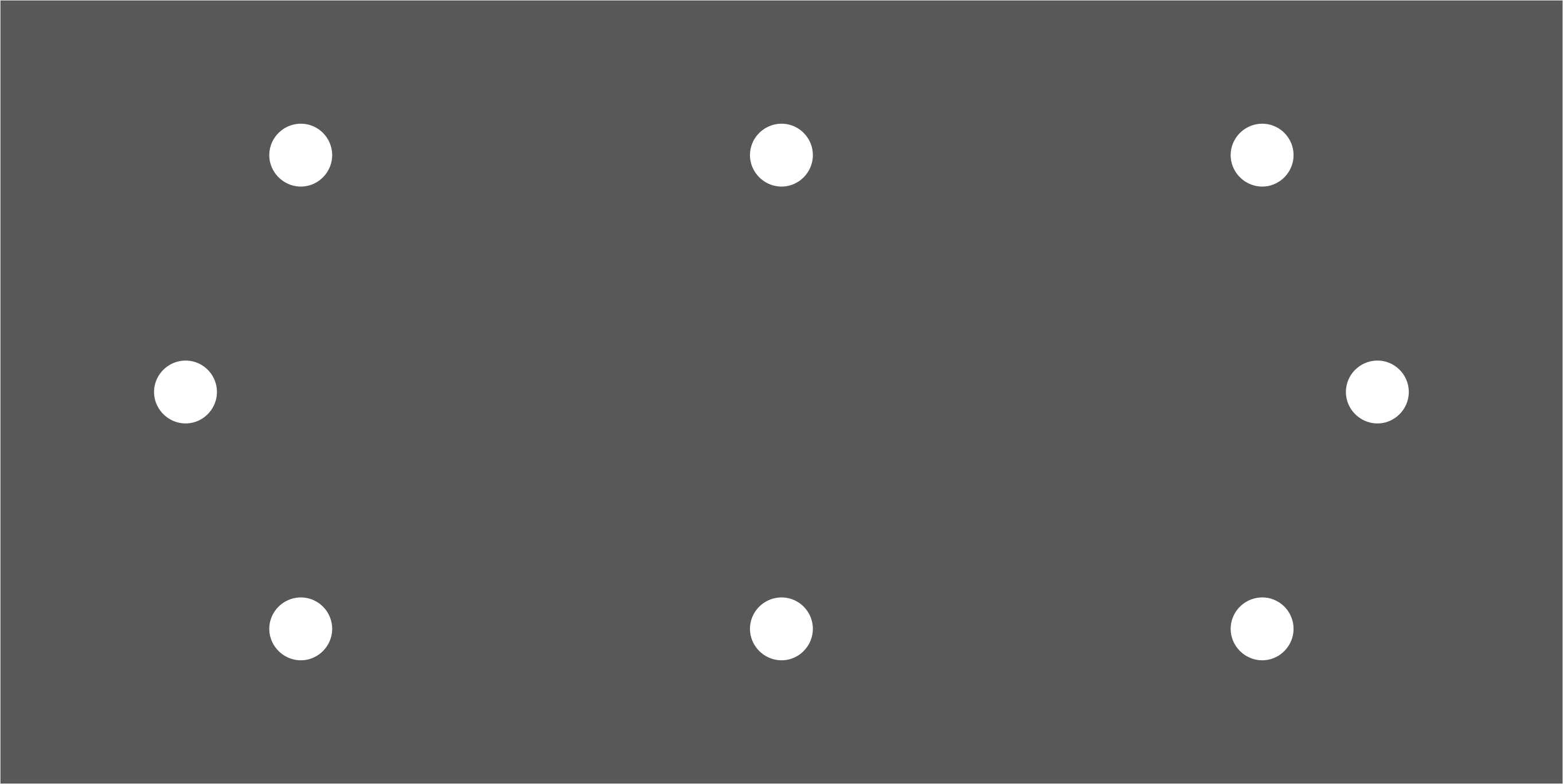

| VP09
|

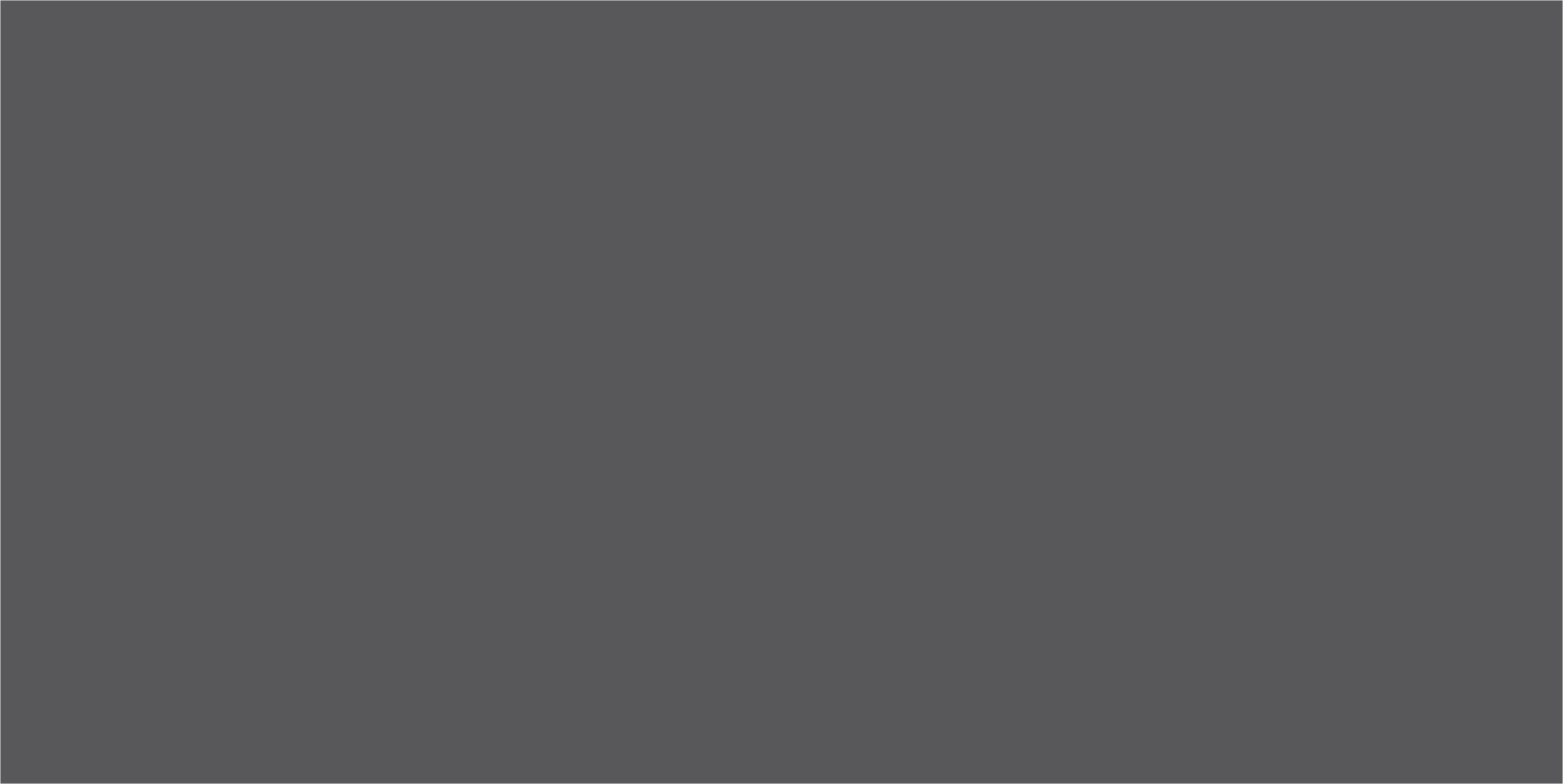

 | 230
| 115
| 0
| V003
|
 | 230
| 115
| 10

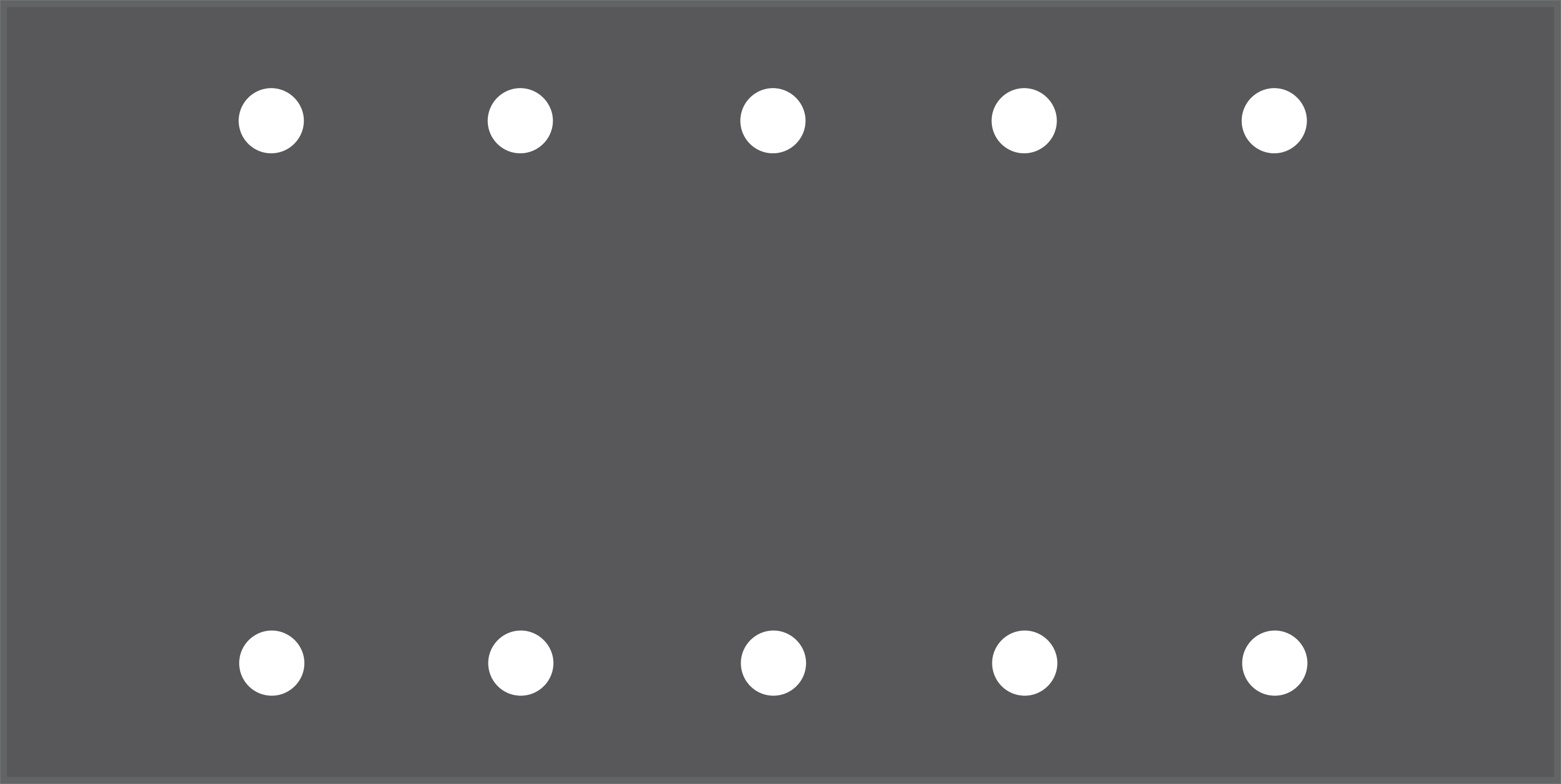

| VP08
|
 | 420
| 70
| 14

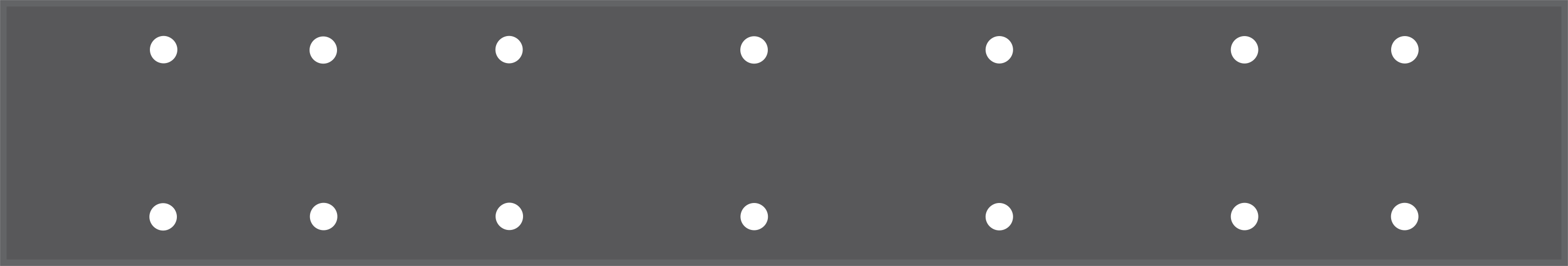

| VP16
|
 | 135
| 80
| 14

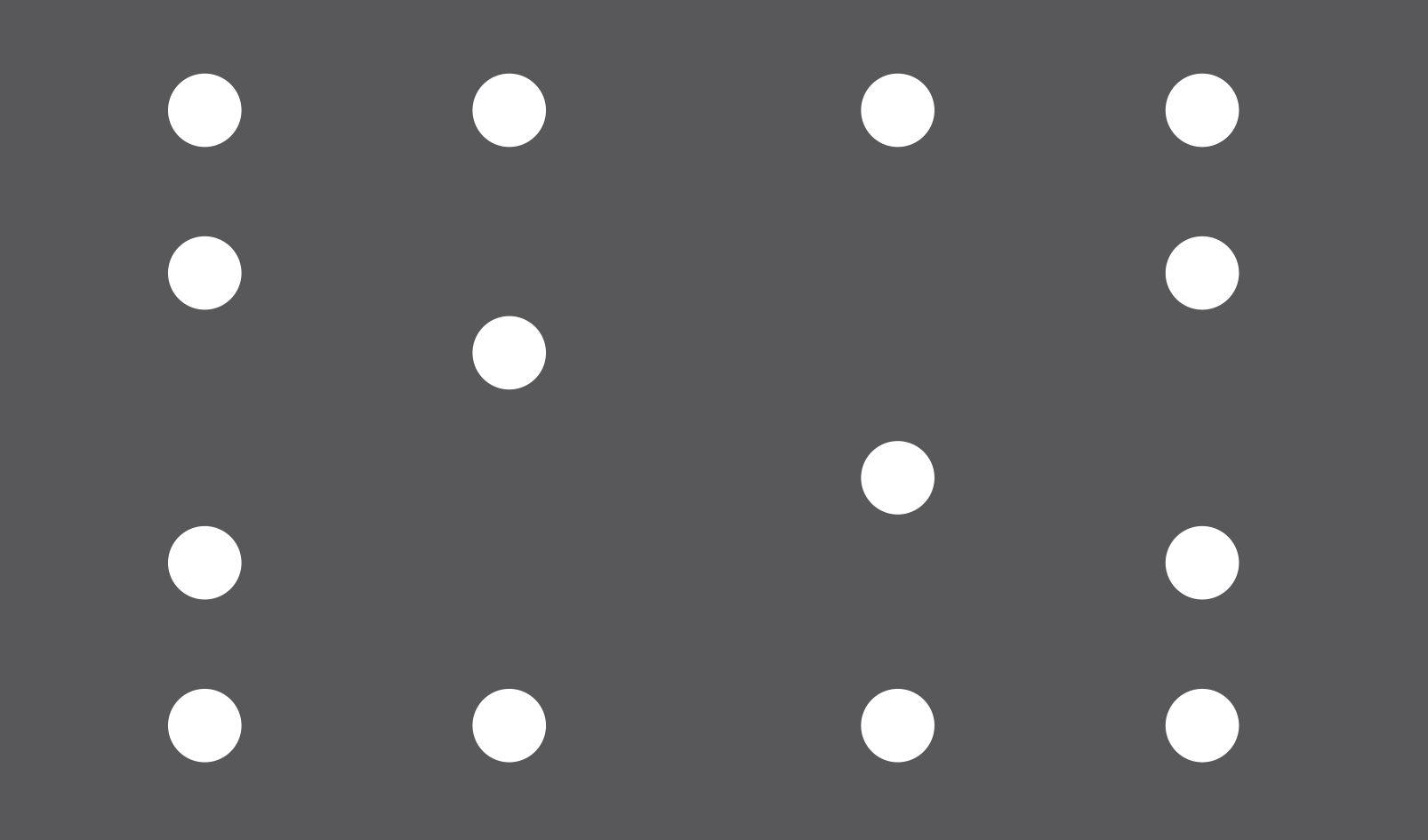

| VP19
|
Shape
| Length
| Width
| Perforations
| Code
|
 | 230
| 93
| 0
| V005
|
 | 230
| 93
| 6+2

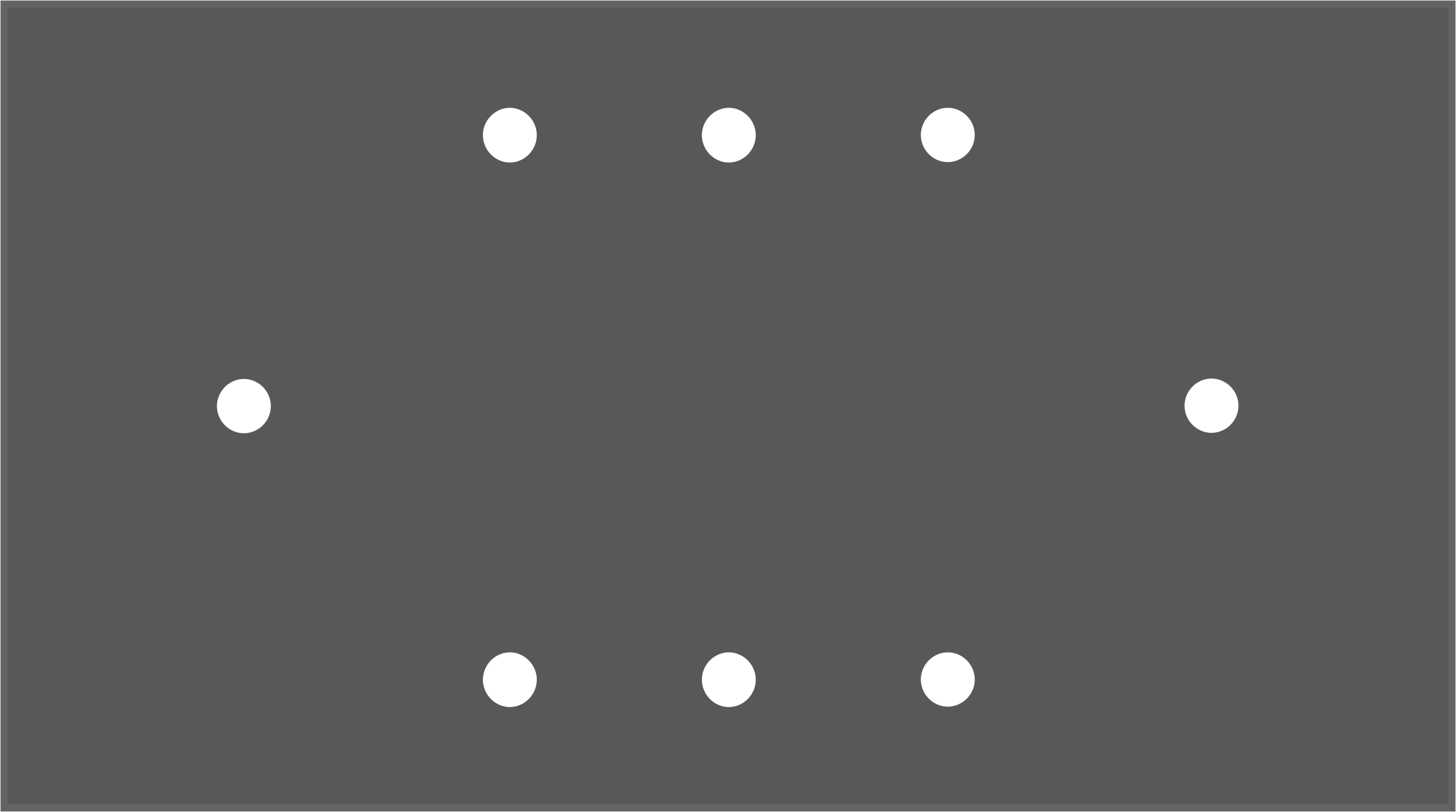

| VP14
|
 | 230
| 93
| 8

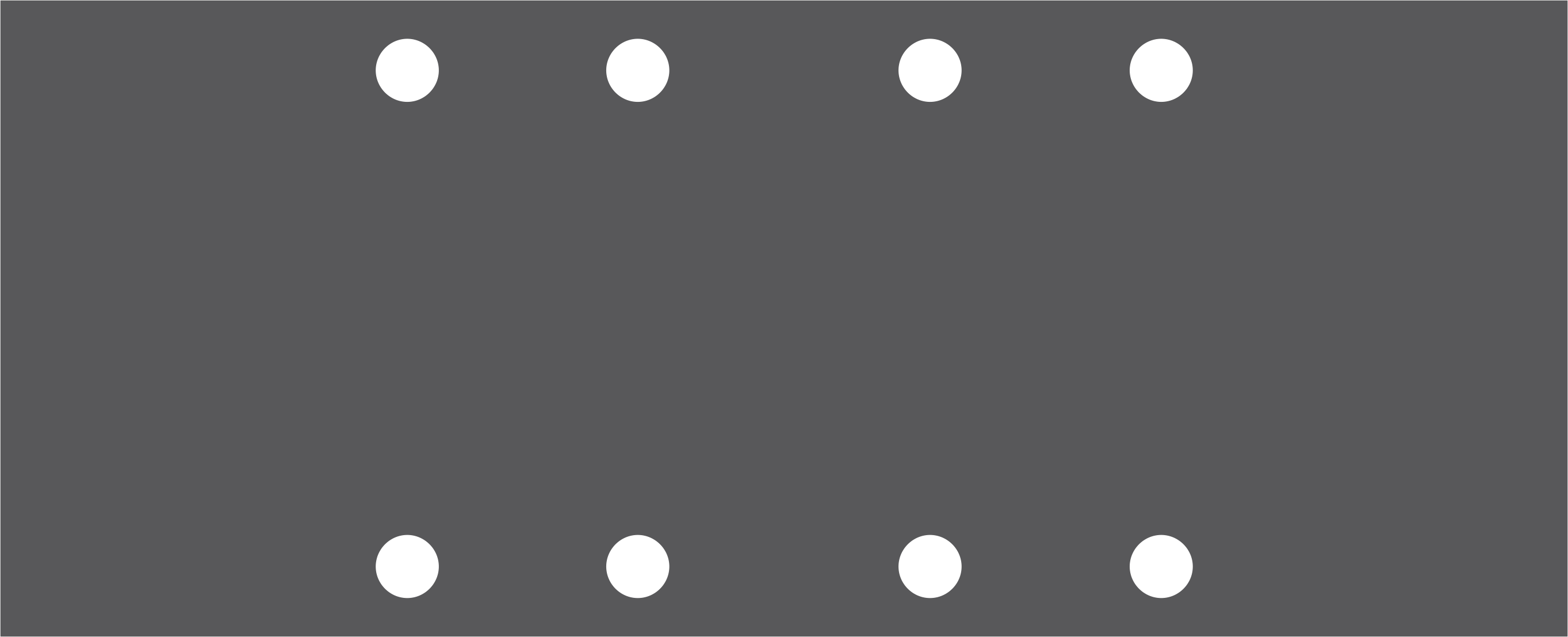

| VP11
|
 | 280
| 115
| 0
| V004
|
 | 280
| 115
| 10
| VP10
|

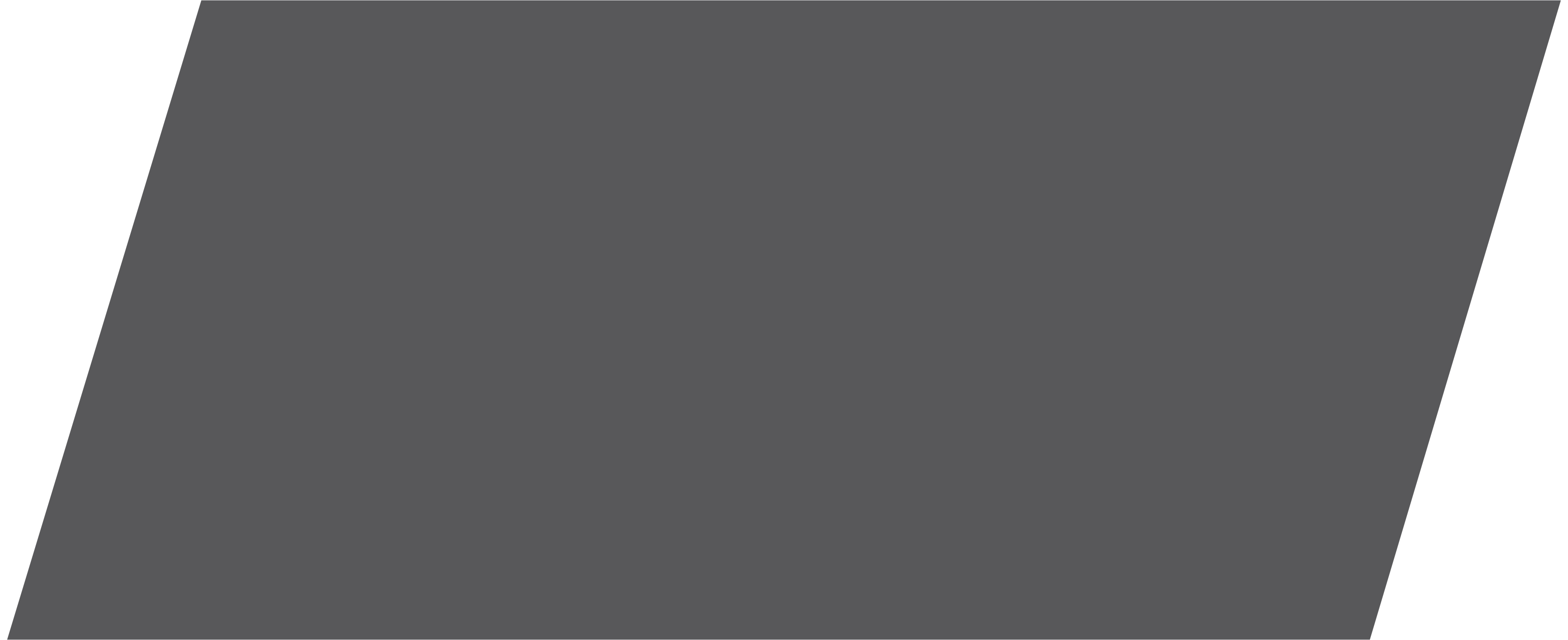

Shape
| Length
| Width
| Perforations
|
 | 475
| 200
| 0
|
 | 560
| 200
| 0
|
| 685
| 200
| 0
|
If you need other dimensions, parameters or grain, just get in touch with Cibo.
